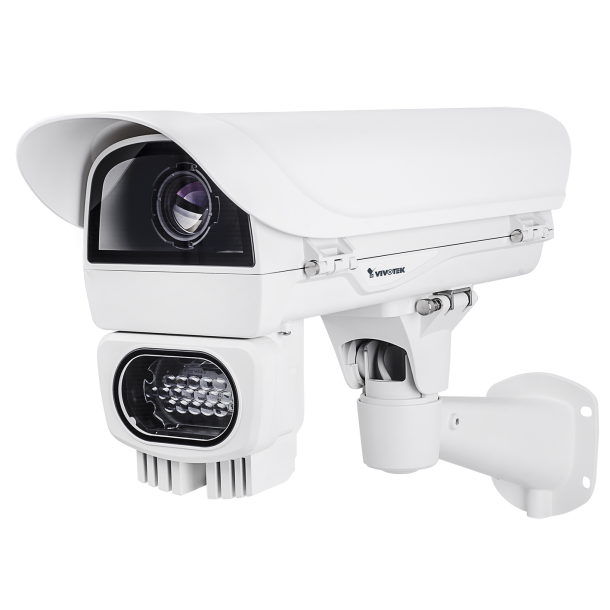

Camera Enclosure with build on IR, 24V AC/DC, IP68, IK10
P/N No.: VIO900053100 |
|
|
Supported Models |
All VIVOTEK Box Cameras |
|
Supported Bracket |
Included |
|
Construction |
IK10 Impact Rated on Cast Aluminum Housing, |
|
Max Output Power Budget |
80W |
|
Power Consumption |
Window Heater: 10W |
| Optional Vari IR Illuminators Power consumption | AI-109: 48W |
|
Window Heater |
≤ 30°C (86°F) ON ≥ 35°C (95°F) OFF |
|
Fan On/Off |
≥ 40°C (104 °F) ON ≤ 35°C (95 °F) OFF |
|
Power Input |
24V AC / 28V DC |
|
Coating |
White epoxy powder coating |
|
Casing |
Weather-proof IP66-rated housing |
|
Operating Temperature |
-20°C ~ 65°C (-4°F ~ 149°F) |
|
External Dimensions |
502.8 (L) x 170 (W) x 158.5 (H) mm |
| Waterproof IP Rating |
IP68 |
|
Included Accessories |
Installation guide, screw kit |
| Stock Location | DSV Horsens |
